Vol 33 No 4 May June 2021

Browser-based NMR data processing

Four generations of quality: Don t risk it

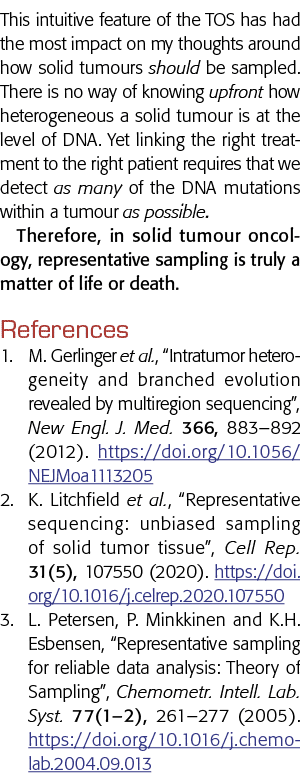

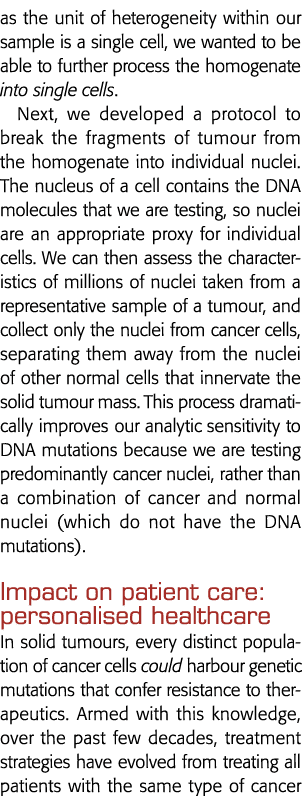

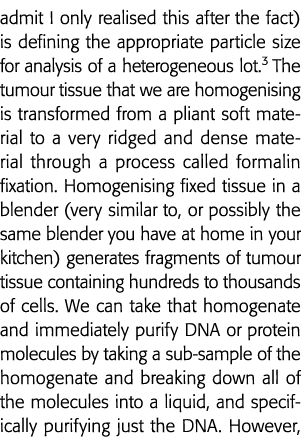

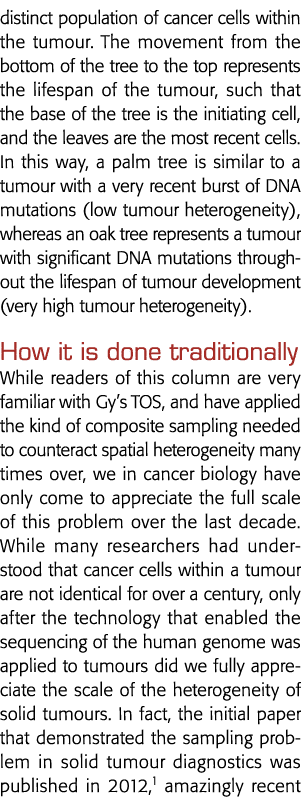

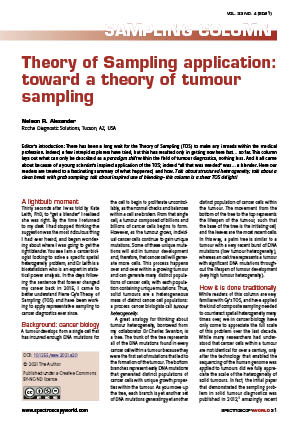

Toward a theory of tumour sampling

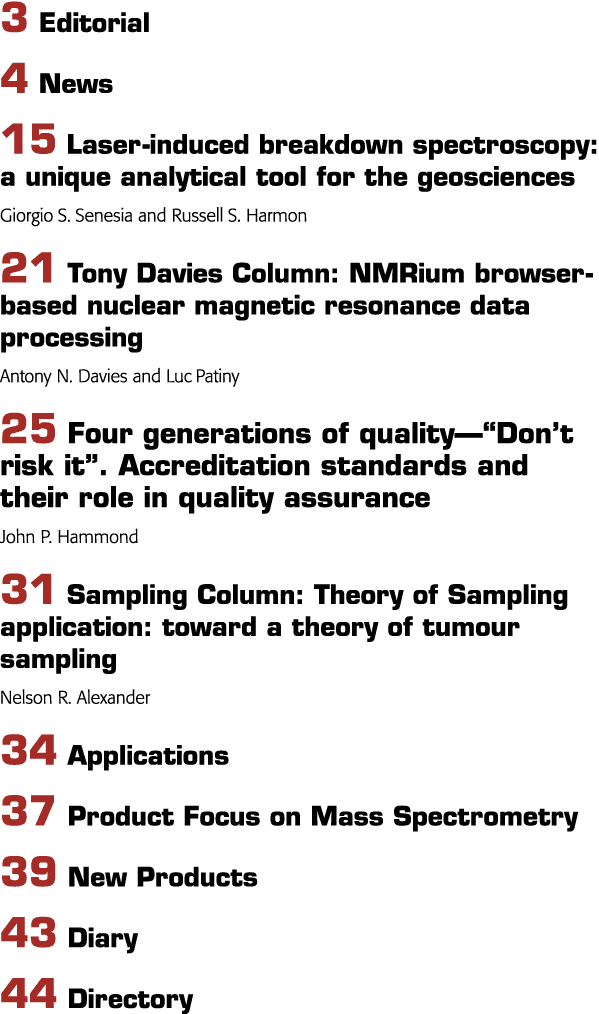

3 Editorial 4 News 15 Laser-induced breakdown spectroscopy: a unique analytical tool for the geosciences Giorgio S S

Vol 33 No 4 May June 2021

Laser-induced breakdown spectroscopy (LIBS) has proved to be a unique analytical tool for use in the geosciences Fin

Publisher Ian Michael E-mail: ian impopen com Advertising Sales Ian Michael IM Publications Open, 6 Charlton Mill, Ch

Spectroscopy World is published by IM Publications Open LLP, 6 Charlton Mill, Charlton, Chichester, West Sussex PO18

2 SPECTROSCOPYWORLD

ISSN: 2634-2405

Spectroscopy World is a digital magazine, published eight times a year and available free-of-charge to qualifying ind

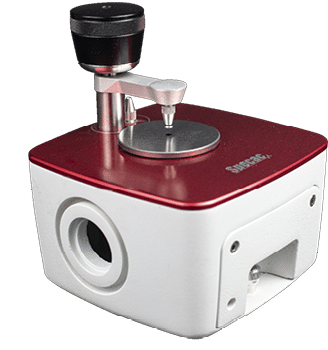

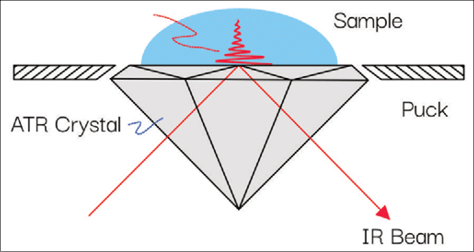

Discover the capabilities of diamond ATR in the pharmaceutical industry

Visit our website (www specac com) to learn more about the Quest diamond ATR If you have any questions you d like an

Compliance with pharmacopoeia regulations requires that all pharmacological substances have IR spectral data spannin

John Hammond continues his journey through four generations of quality with Don t risk it Accreditation standards

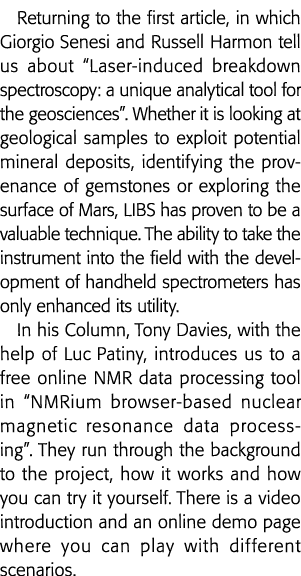

Returning to the first article, in which Giorgio Senesi and Russell Harmon tell us about Laser-induced breakdown spe

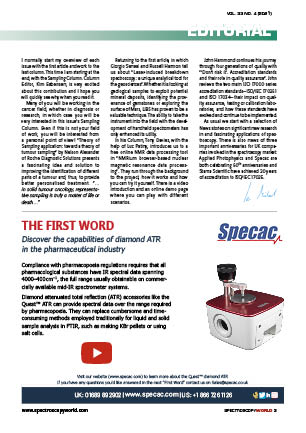

I normally start my overview of each issue with the first article and work to the last column This time I am startin

VOL 33 NO 4 (2021)

www spectroscopyworld com

SPECTROSCOPYWORLD 3

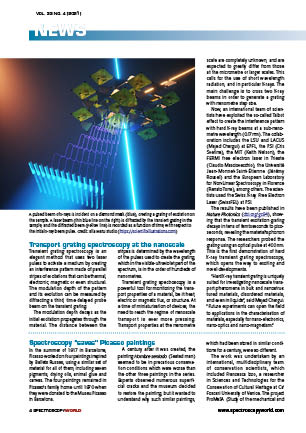

Transport grating spectroscopy at the nanoscale

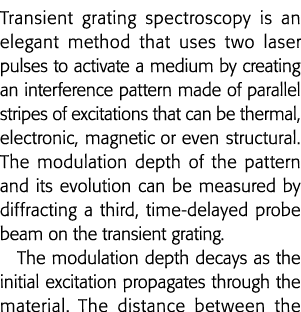

Transient grating spectroscopy is an elegant method that uses two laser pulses to activate a medium by creating an in

stripes is determined by the wavelength of the pulses used to create the grating, which in the visible-ultraviolet pa

scale are completely unknown, and are expected to greatly differ from those at the micrometre or larger scales This

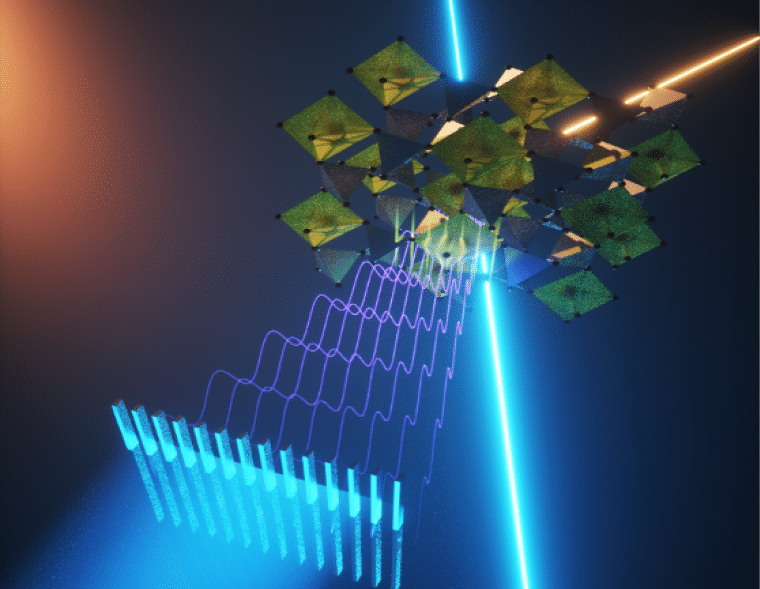

A pulsed beam of X-rays is incident on a diamond mask (blue), creating a grating of excitation on the sample A laser

Spectroscopy saves Picasso paintings

In the summer of 1917 in Barcelona, Picasso worked on four paintings inspired by Ballets Russes, using a similar set

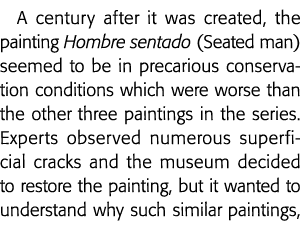

A century after it was created, the painting Hombre sentado (Seated man) seemed to be in precarious conservation cond

which had been stored in similar conditions for a century, were so different The work was undertaken by an internati

VOL 33 NO 4 (2021)

www spectroscopyworld com

4 SPECTROSCOPYWORLD

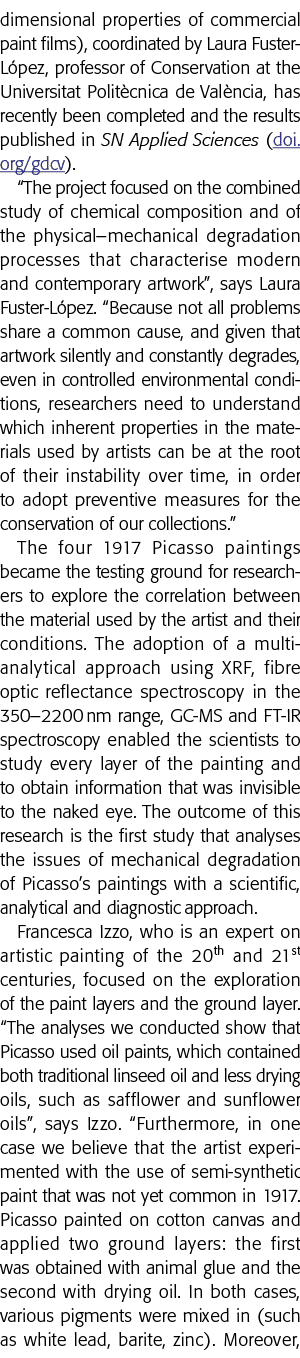

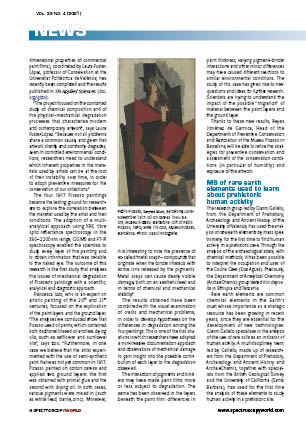

dimensional properties of commercial paint films), coordinated by Laura Fuster-López, professor of Conservation at th

it is interesting to note the presence of so-called metal soaps —compounds that originate when the binder interacts

paint thickness, varying pigment binder interactions and other minor differences may have caused different reactions

Pablo Picasso, Seated Man, Barcelona, June November 1917 Oil on canvas 104 54 cm, Museu Picasso, Barcelona Gift o

VOL 33 NO 4 (2021)

www spectroscopyworld com

6 SPECTROSCOPYWORLD

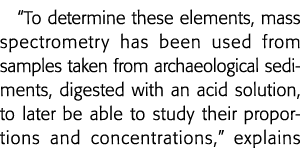

To determine these elements, mass spectrometry has been used from samples taken from archaeological sediments, diges

Gallello This analysis in archaeological deposits has been developed by the ArchaeChemis multidisciplinary unit over

interactive sessions of raw and processed data IDCube Lite, a free version of the software described in the paper, h

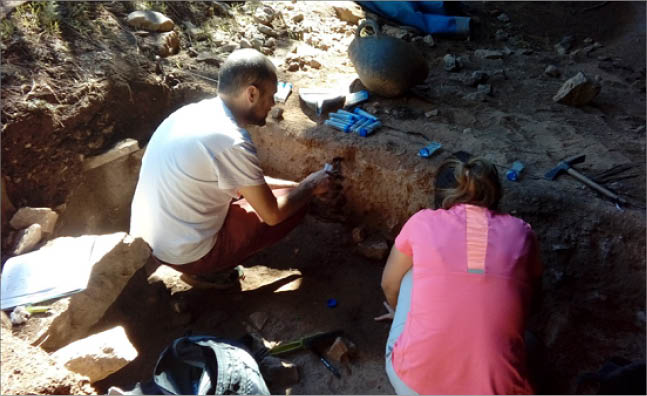

Gathering samples

Free hyperspectral software

Multi- and hyperspectral imaging modalities encompass a growing number of spectral techniques that find many applicat

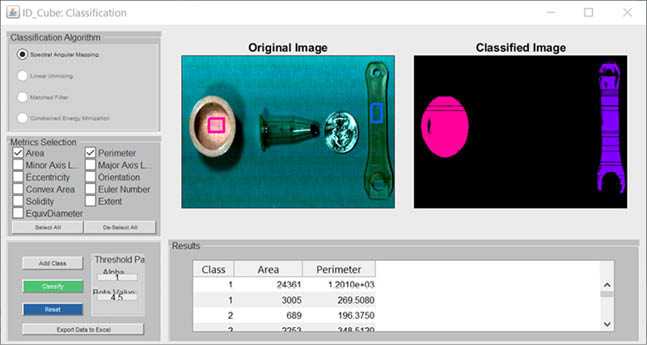

authors present their software platform, IDCube Lite, an Interactive Discovery Cube that performs essential operation

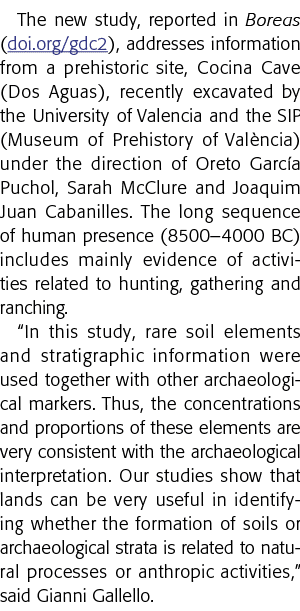

The new study, reported in Boreas (doi org gdc2), addresses information from a prehistoric site, Cocina Cave (Dos Agu

VOL 33 NO 4 (2021)

www spectroscopyworld com

SPECTROSCOPYWORLD 7

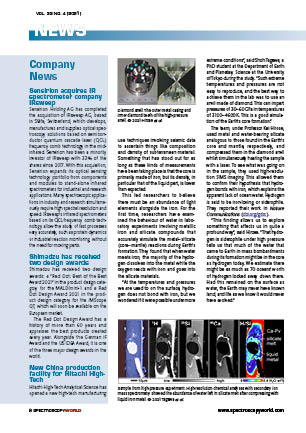

Company News Sensirion acquires IR spectrometer company IRsweep Sensirion Holding AG has completed the acquisition of

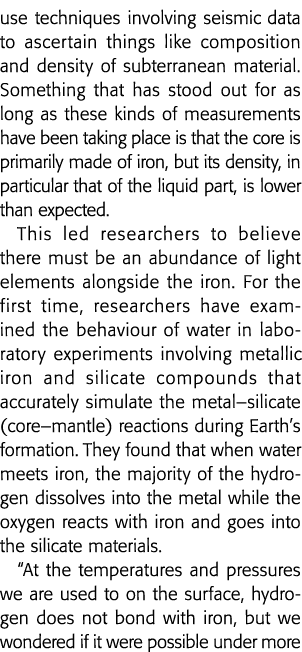

use techniques involving seismic data to ascertain things like composition and density of subterranean material Some

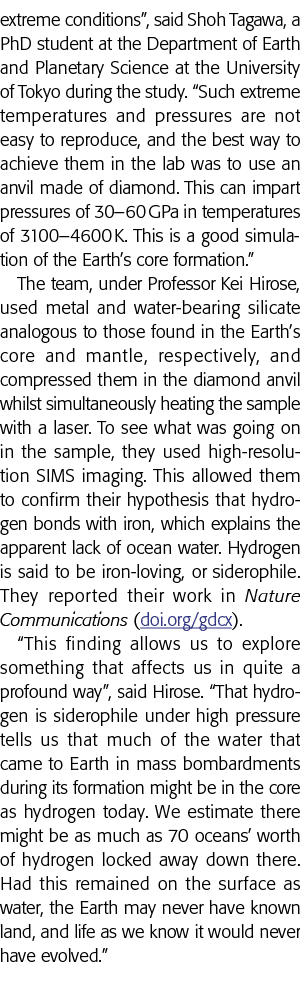

extreme conditions , said Shoh Tagawa, a PhD student at the Department of Earth and Planetary Science at the Universi

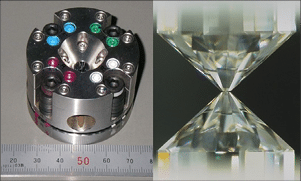

Diamond anvil The outer metal casing and inner diamond teeth of the high-pressure anvil 2021 Hirose et al

Sample from high-pressure experiment High-resolution chemical analyses with secondary ion mass spectrometry showed t

VOL 33 NO 4 (2021)

www spectroscopyworld com

8 SPECTROSCOPYWORLD

VOL 33 NO 4 (2021)

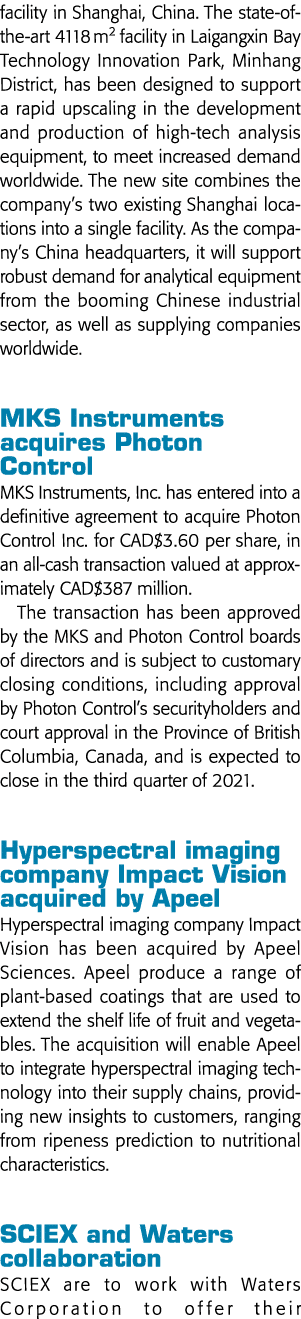

facility in Shanghai, China The state-of-the-art 4118 m2 facility in Laigangxin Bay Technology Innovation Park, Minh

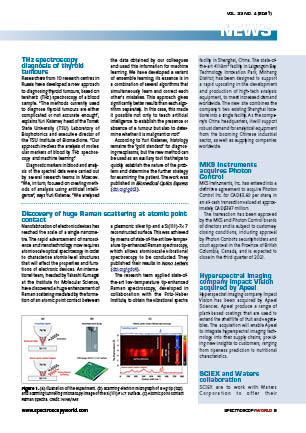

THz spectroscopy diagnosis of thyroid tumours Researchers from 10 research centres in Russia have developed a new app

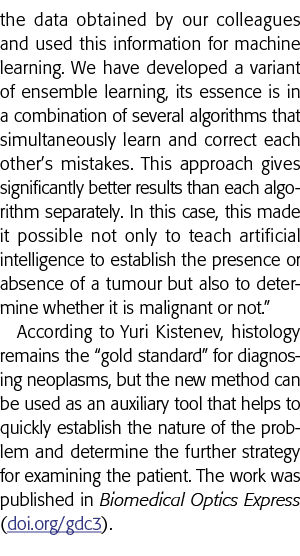

the data obtained by our colleagues and used this information for machine learning We have developed a variant of en

Discovery of huge Raman scattering at atomic point contact

Nanofabrication of electronic devices has reached the scale of a single nanometre The rapid advancement of nanoscien

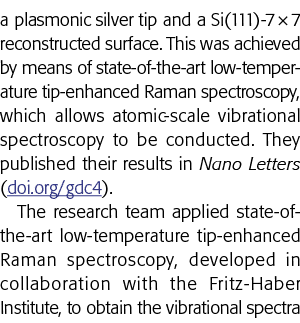

a plasmonic silver tip and a Si(111)-7 7 reconstructed surface This was achieved by means of state-of-the-art low-

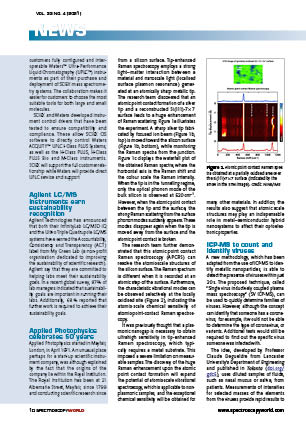

Figure 1 (a) Illustration of the experiment (b) Scanning electron micrograph of a Ag tip (top) and scanning tunnell

www spectroscopyworld com

SPECTROSCOPYWORLD 9

VOL 33 NO 4 (2021)

from a silicon surface Tip-enhanced Raman spectroscopy employs a strong light matter interaction between a material

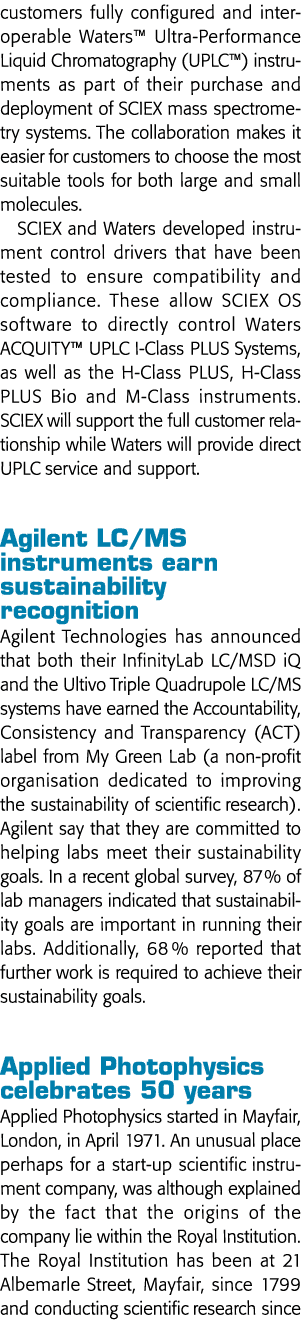

customers fully configured and interoperable Waters Ultra-Performance Liquid Chromatography (UPLC ) instruments as p

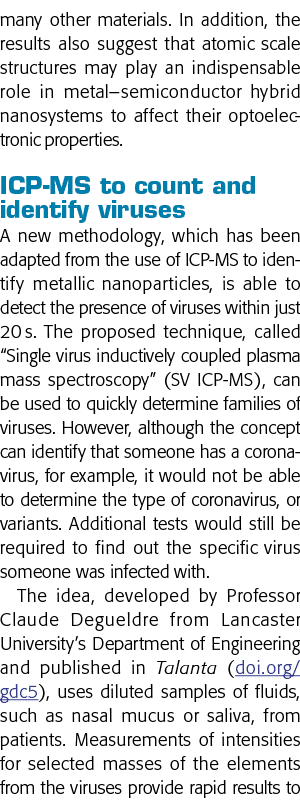

many other materials In addition, the results also suggest that atomic scale structures may play an indispensable ro

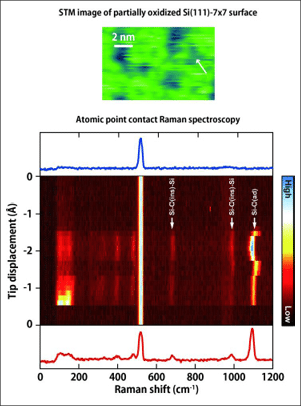

Figure 2 Atomic point contact Raman spectra obtained at a partially oxidised area over the Si(111)-7 7 surface (in

www spectroscopyworld com

10 SPECTROSCOPYWORLD

VOL 33 NO 4 (2021)

Digital surface, 3d generated image whith DOF

Chemometrics Books A user-friendly guide to multivariate calibration and classification by Tormod Næs, Tomas Isaksso

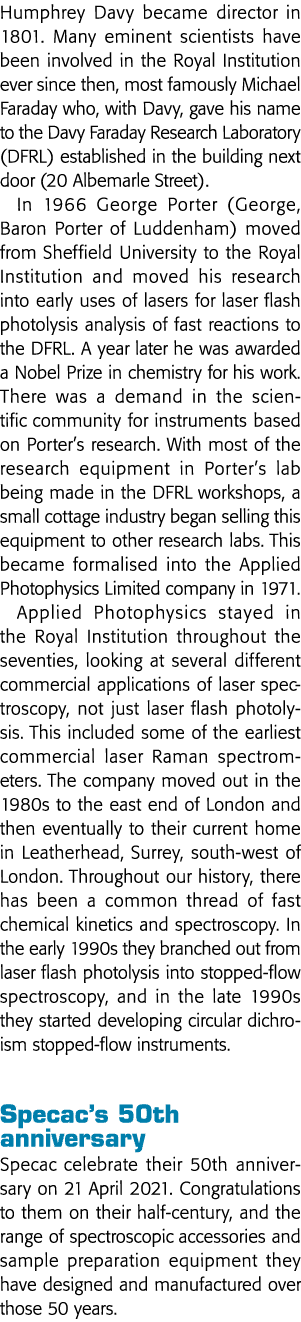

Humphrey Davy became director in 1801 Many eminent scientists have been involved in the Royal Institution ever since

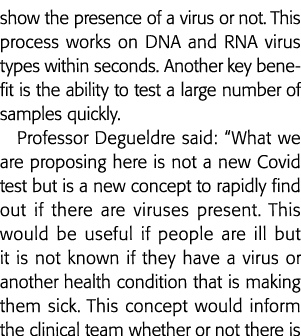

show the presence of a virus or not This process works on DNA and RNA virus types within seconds Another key benefi

a virus to inform early treatment actions and other measures such as the need for isolation More detailed tests woul

LIBS of skid marks may identify cars in accidents

Skid marks left by cars are often analysed for their impression patterns, but they often do not provide enough inform

Baudelet and his graduate student, John Lucchi, started testing their idea by recreating skid marks in the laboratory

The University of Central Florida team used LIBS on tyre samples Credit: University of Central Florida Karen Norum

www spectroscopyworld com

SPECTROSCOPYWORLD 11

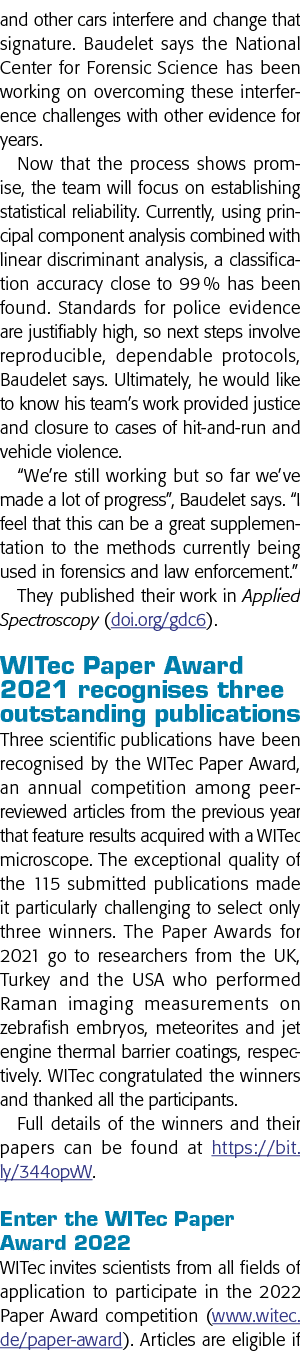

and other cars interfere and change that signature Baudelet says the National Center for Forensic Science has been w

they were published in 2021 in a peer-reviewed journal and feature results (at least partially) obtained with a WITec

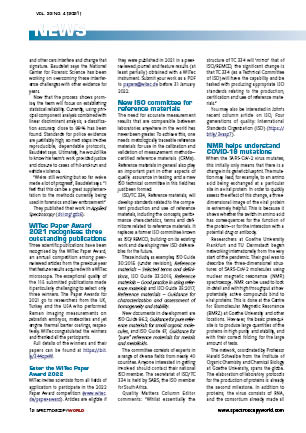

structure of TC 334 will mirror that of ISO REMCO, the significant change is that TC 334 (as a Technical Committee

VOL 33 NO 4 (2021)

www spectroscopyworld com

12 SPECTROSCOPYWORLD

VOL 33 NO 4 (2021)

important RNA fragments of SARS-CoV-2 accessible last year With the expertise of 129 colleagues, it has now been pos

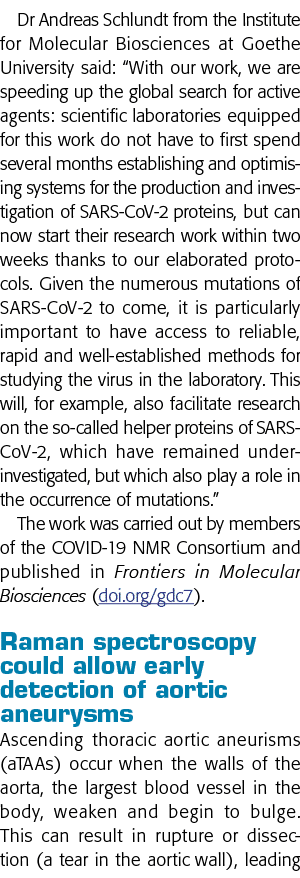

Dr Andreas Schlundt from the Institute for Molecular Biosciences at Goethe University said: With our work, we are sp

to life-threatening bleeding and death Sometimes these complications can occur before any symptoms of the aneurysm a

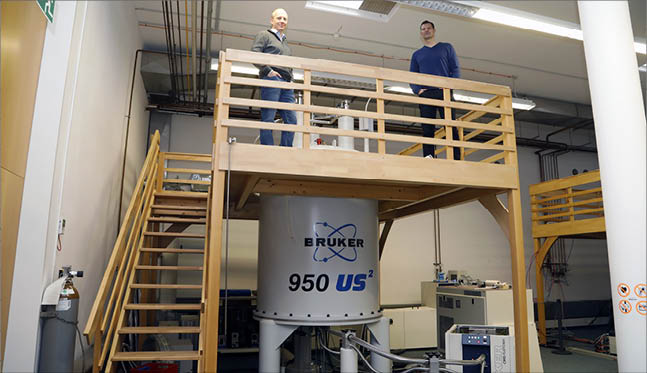

Scientists Martin Hengesbach (left) and Andreas Schlundt at the NMR spectrometer at Goethe-University Frankfurt, Germ

www spectroscopyworld com

SPECTROSCOPYWORLD 13

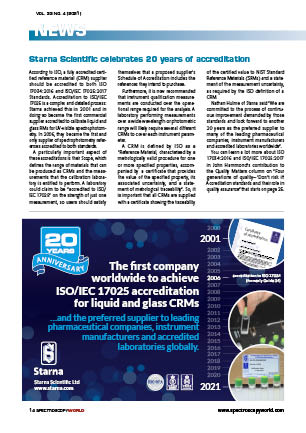

Starna Scientific celebrates 20 years of accreditation

According to ISO, a fully accredited certified reference material (CRM) supplier should be accredited to both ISO 170

themselves that a proposed supplier s Schedule of Accreditation includes the references they intend to purchase Furt

of the certified value to NIST Standard Reference Materials (SRMs) and a statement of the measurement uncertainty, as

VOL 33 NO 4 (2021)

www spectroscopyworld com

14 SPECTROSCOPYWORLD

VOL 33 NO 4 (2021)

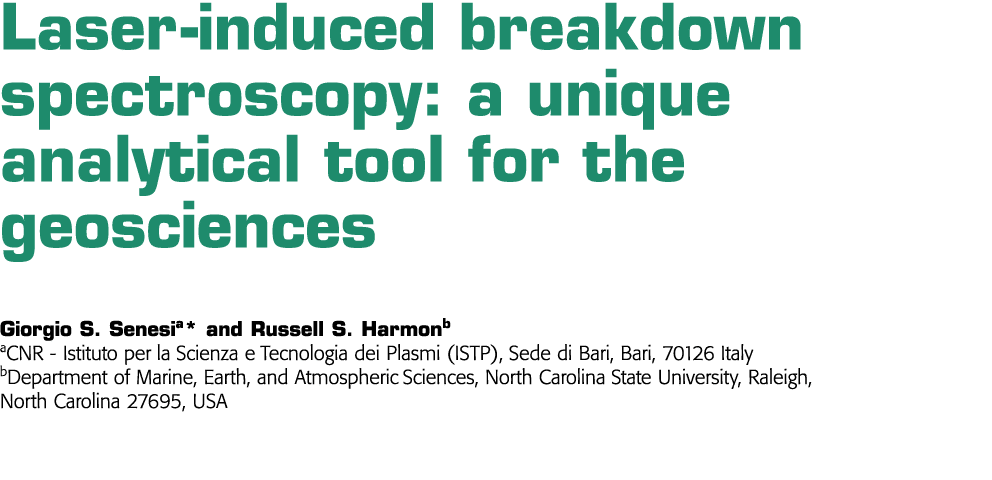

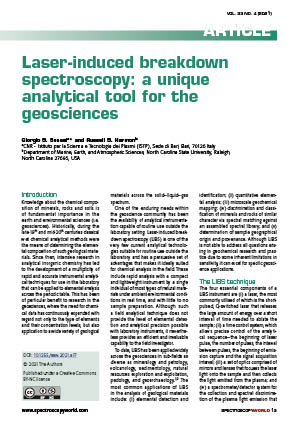

Laser-induced breakdown spectroscopy: a unique analytical tool for the geosciences Giorgio S Senesia* and Russell S

Introduction Knowledge about the chemical composition of minerals, rocks and soils is of fundamental importance in th

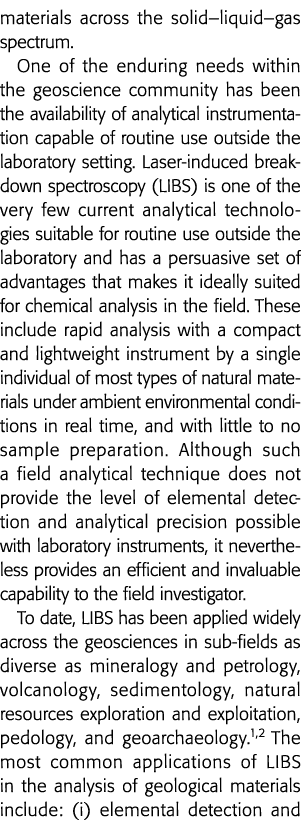

materials across the solid liquid gas spectrum One of the enduring needs within the geoscience community has been th

identification; (ii) quantitative elemental analysis; (iii) microscale geochemical mapping; (iv) discrimination and c

DOI: 10 1255 sew 2021 a17 2021 The Authors Published under a Creative Commons BY-NC licence

Rectangle

Dariusz Gołowicz, MSc, graduated with honours from the University of Warsaw (UW) in 2016 in Physical Chemistry Curre

Rectangle

Rectangle

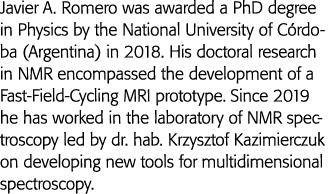

Javier A Romero was awarded a PhD degree in Physics by the National University of Córdoba (Argentina) in 2018 His d

Rectangle

Rectangle

Krzysztof Kazimierczuk got his PhD degree in Chemistry from the University of Warsaw in 2009 His research interests

Rectangle

Dr Russell Harmon is a geochemist and an Adjunct Associate Professor in the Department of Marine, Earth, & Atmospheri

Dr Giorgio S Senesi is a geologist and researcher at National Council Research (CNR), Institute for Plasma Science a

www spectroscopyworld com

SPECTROSCOPYWORLD 15

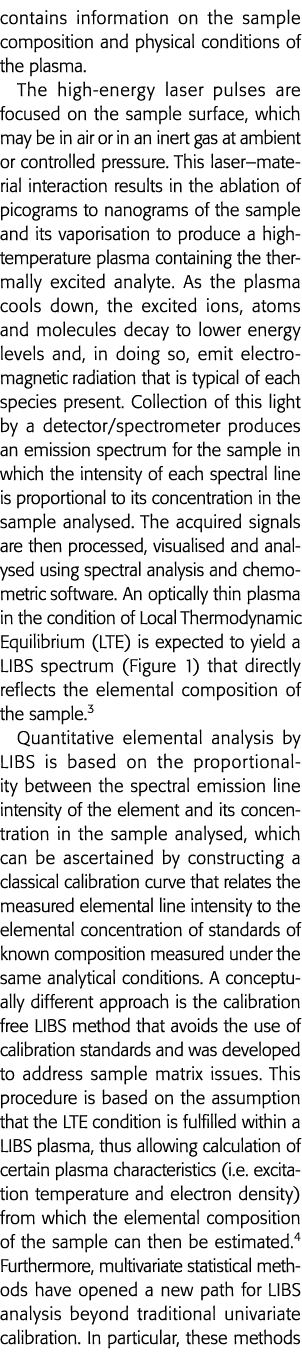

contains information on the sample composition and physical conditions of the plasma The high-energy laser pulses ar

use all the information contained in a LIBS spectrum, rather than just that for one or more emission lines in a limit

with a single laser pulse based on one or more emission lines in the spectral region between 200 nm and 900 nm; Par

VOL 33 NO 4 (2021)

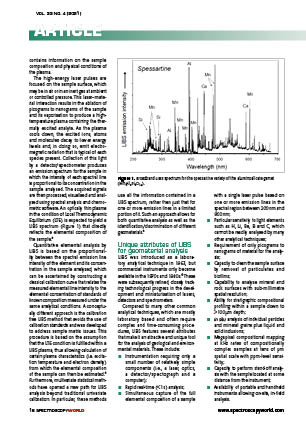

Figure 1 Broadband LIBS spectrum for the spessartine variety of the aluminosilicate garnet (Mn3Al2Si3O12)

www spectroscopyworld com

16 SPECTROSCOPYWORLD

VOL 33 NO 4 (2021)

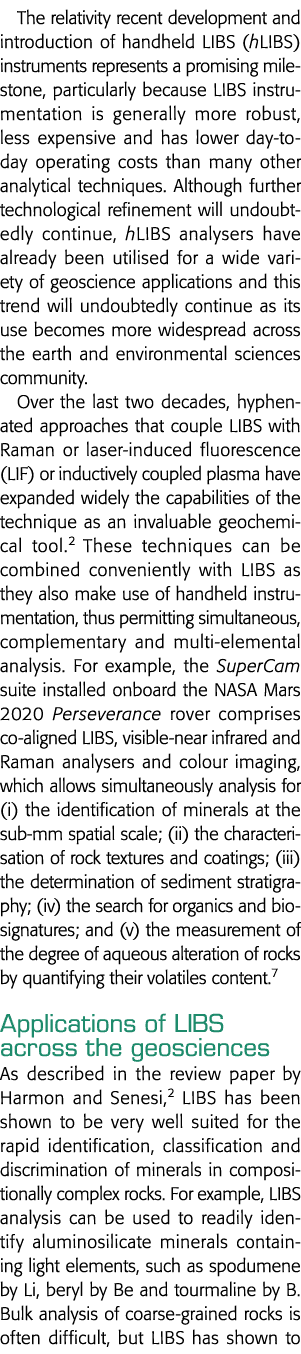

The relativity recent development and introduction of handheld LIBS (hLIBS) instruments represents a promising milest

be straightforward and effective for the quantitative analysis of fine-grained sedimentary rocks and their metamorphi

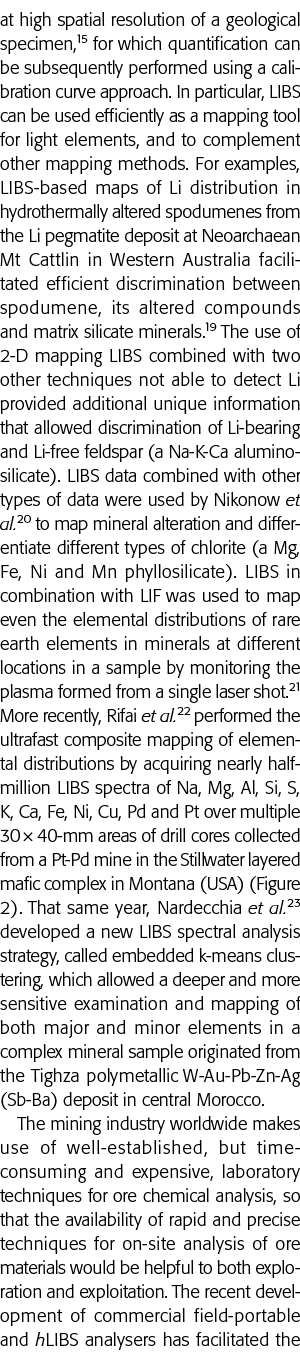

at high spatial resolution of a geological specimen,15 for which quantification can be subsequently performed using a

www spectroscopyworld com

SPECTROSCOPYWORLD 17

rapid, on-site qualitative and quantitative elemental analysis, classification, discrimination and imaging of a wide

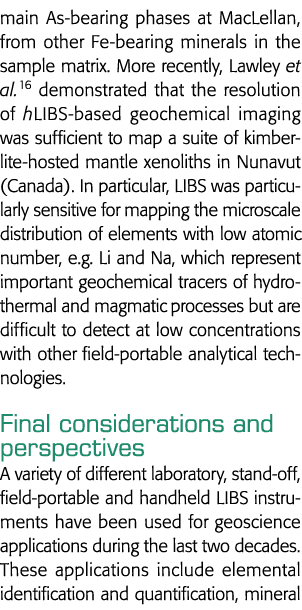

main As-bearing phases at MacLellan, from other Fe-bearing minerals in the sample matrix More recently, Lawley et al

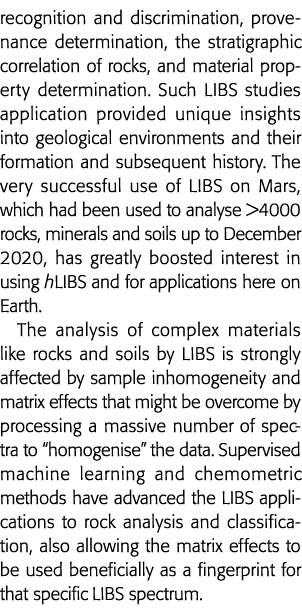

recognition and discrimination, provenance determination, the stratigraphic correlation of rocks, and material proper

VOL 33 NO 4 (2021)

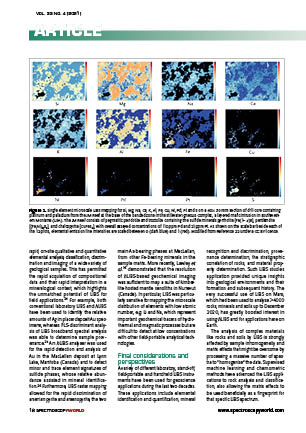

Figure 2 Single element microscale LIBS mapping for Si, Mg, Na, Ca, K, Al, Fe, Cu, Ni, Pd, Pt and S on a 40 30 mm

www spectroscopyworld com

18 SPECTROSCOPYWORLD

VOL 33 NO 4 (2021)

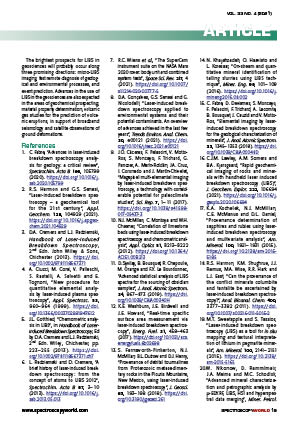

The brightest prospects for LIBS in geosciences will probably occur along three promising directions: micro-LIBS imag

7 R C Wiens et al , The SuperCam instrument suite on the NASA Mars 2020 rover: body unit and combined system tests

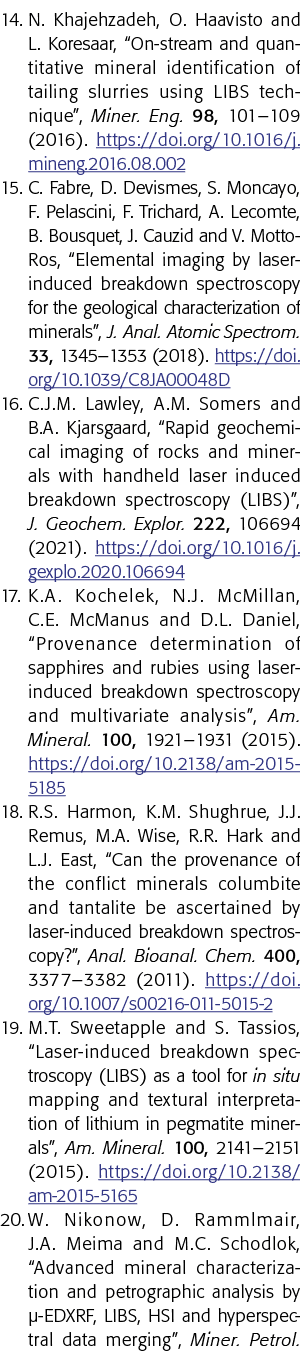

14 N Khajehzadeh, O Haavisto and L Koresaar, On-stream and quantitative mineral identification of tailing slurri

www spectroscopyworld com

SPECTROSCOPYWORLD 19

113, 417 431 (2019) https: doi org 10 1007 s00710-019-00657-z 21 M Gaft, Y Raichlin, F Pelascini, G Panzer and

VOL 33 NO 4 (2021)

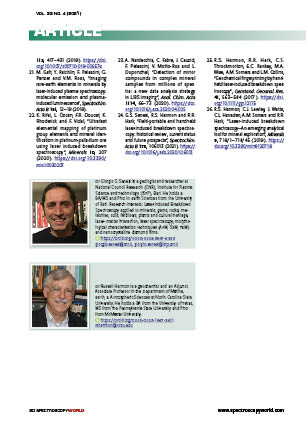

Dr Russell Harmon is a geochemist and an Adjunct Associate Professor in the Department of Marine, Earth, & Atmospheri

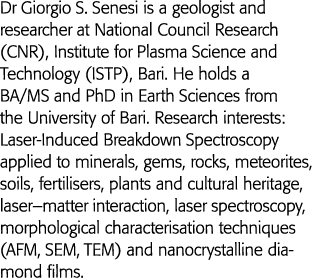

Dr Giorgio S Senesi is a geologist and researcher at National Council Research (CNR), Institute for Plasma Science a

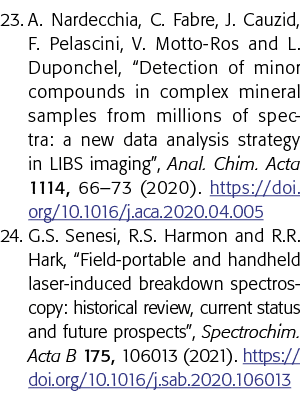

23 A Nardecchia, C Fabre, J Cauzid, F Pelascini, V Motto-Ros and L Duponchel, Detection of minor compounds in

25 R S Harmon, R R Hark, C S Throckmorton, E C Rankey, M A Wise, A M Somers and L M Collins, Geochemical fin

www spectroscopyworld com

20 SPECTROSCOPYWORLD

TONY DAVIES COLUMN

VOL 33 NO 4 (2021)

DOI: 10 1255 sew 2021 a18 2021 The Authors Published under a Creative Commons BY licence

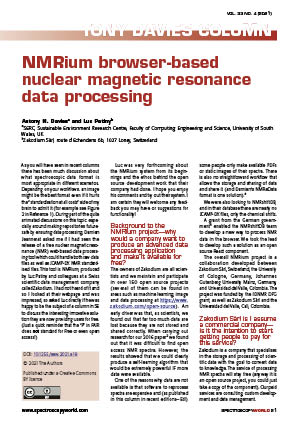

NMRium browser-based nuclear magnetic resonance data processing Antony N Daviesa and Luc Patinyb aSERC, Sustainable

As you will have seen in recent columns there has been much discussion about what spectroscopic data format is most a

Luc was very forthcoming about the NMRium system from its beginnings and the ethos behind the open source development

some people only make available PDFs or static images of their spectra There is also no straightforward workflow tha

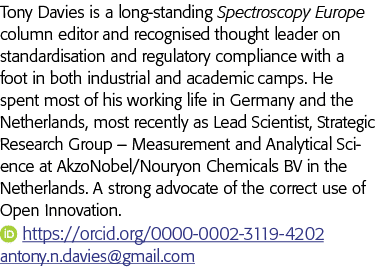

Tony Davies is a long-standing Spectroscopy Europe column editor and recognised thought leader on standardisation and

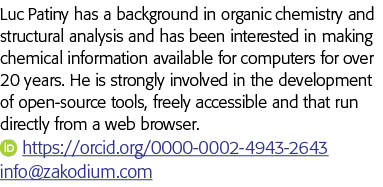

Luc Patiny has a background in organic chemistry and structural analysis and has been interested in making chemical i

Tony Davies is a long-standing Spectroscopy Europe column editor and recognised thought leader on standardisation and

www spectroscopyworld com

SPECTROSCOPYWORLD 21

TONY DAVIES COLUMN

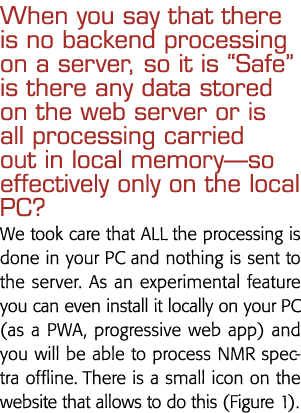

When you say that there is no backend processing on a server, so it is Safe is there any data stored on the web ser

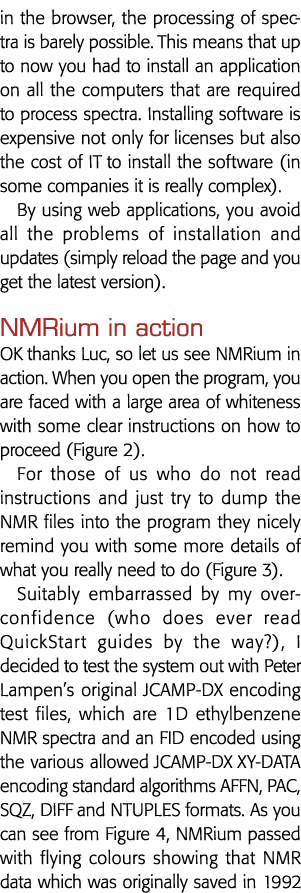

in the browser, the processing of spectra is barely possible This means that up to now you had to install an applica

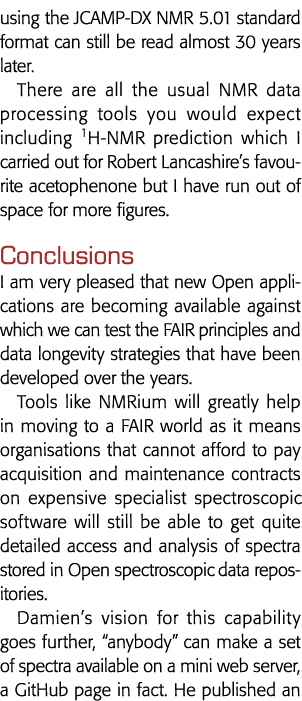

using the JCAMP-DX NMR 5 01 standard format can still be read almost 30 years later There are all the usual NMR data

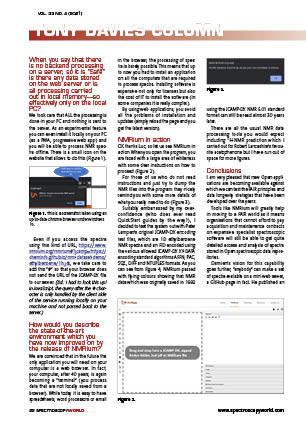

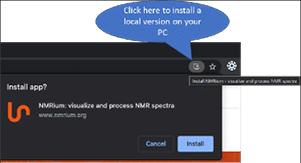

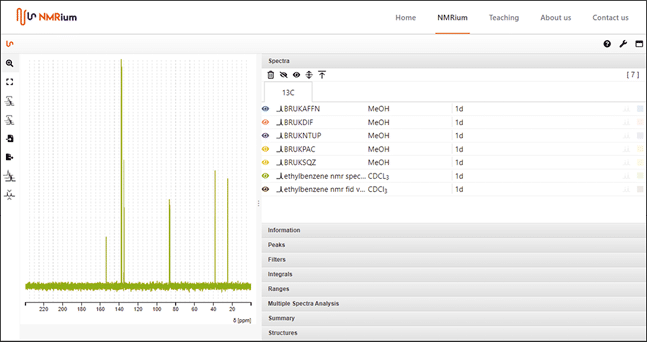

Figure 1 This is a screenshot taken using an up-to-date Chrome browser under Windows 10

Even if you access the spectra using this kind of URL, https: www nmrium org nmrium# jcamp https: cheminfo github i

VOL 33 NO 4 (2021)

www spectroscopyworld com

22 SPECTROSCOPYWORLD

TONY DAVIES COLUMN

VOL 33 NO 4 (2021)

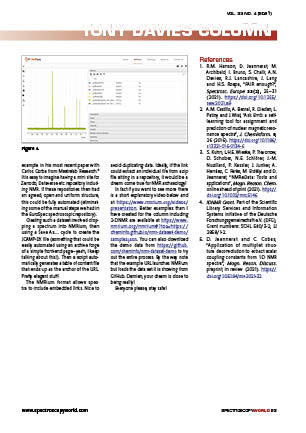

example in his most recent paper with Carlos Corba from Mestrelab Research 5 It is easy to imagine having a mini site

avoid duplicating data Ideally, if the link could extract an individual file from a zip file sitting in a repository

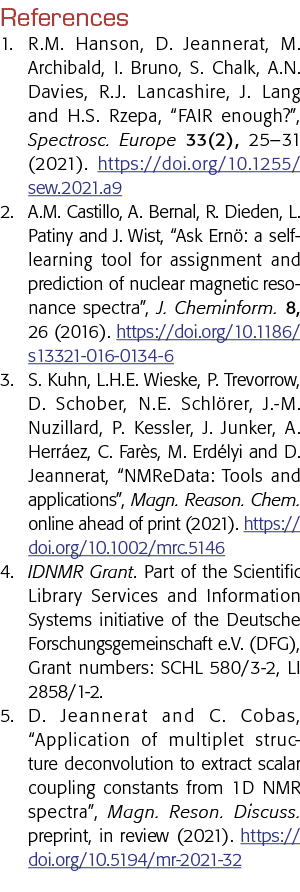

References 1 R M Hanson, D Jeannerat, M Archibald, I Bruno, S Chalk, A N Davies, R J Lancashire, J Lang and

www spectroscopyworld com

SPECTROSCOPYWORLD 23

TONY DAVIES COLUMN

VOL 33 NO 4 (2021)

Tony Davies is a long-standing Spectroscopy Europe column editor and recognised thought leader on standardisation an

Luc Patiny has a background in organic chemistry and structural analysis and has been interested in making chemical i

www spectroscopyworld com

24 SPECTROSCOPYWORLD

QUALITY MATTERS

VOL 33 NO 4 (2021)

ISO 17000 series Developed under the responsibility of ISO CASCO, this series currently consists of 41 standards rela

which is defined by its term of reference as follows ISO CASCO—Terms of reference To study means of assessing the

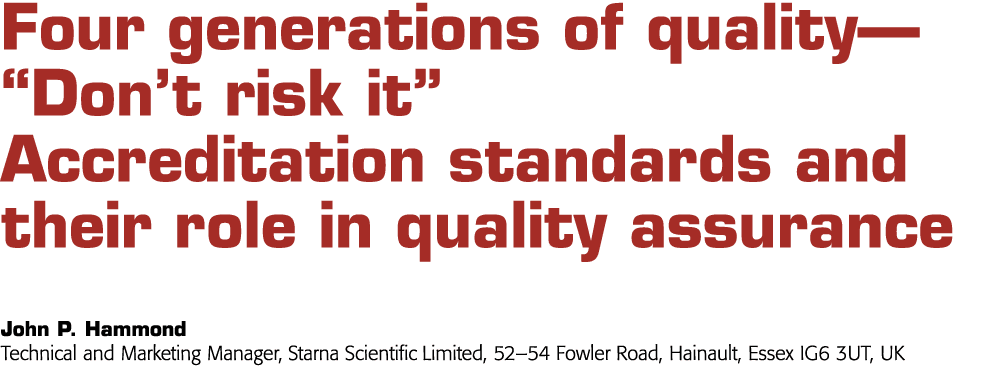

Four generations of quality— Don t risk it Accreditation standards and their role in quality assurance John P Ham

Introduction This article reviews the two principal ISO 17000 series accreditation standards, namely ISO IEC 170251 a

DOI: 10 1255 sew 2021 a19 2021 The Author Published under a Creative Commons BY-NC-ND licence

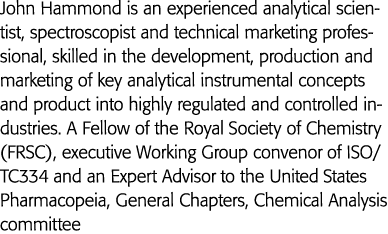

John Hammond is an experienced analytical scientist, spectroscopist and technical marketing professional, skilled in

John Hammond is an experienced analytical scientist, spectroscopist and technical marketing professional, skilled in

www spectroscopyworld com

SPECTROSCOPYWORLD 25

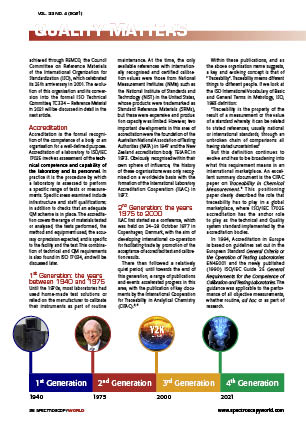

QUALITY MATTERS

Within these publications, and as the above organisation name suggests, a key and evolving concept is that of Tracea

maintenance At the time, the only available references with internationally recognised and certified calibration val

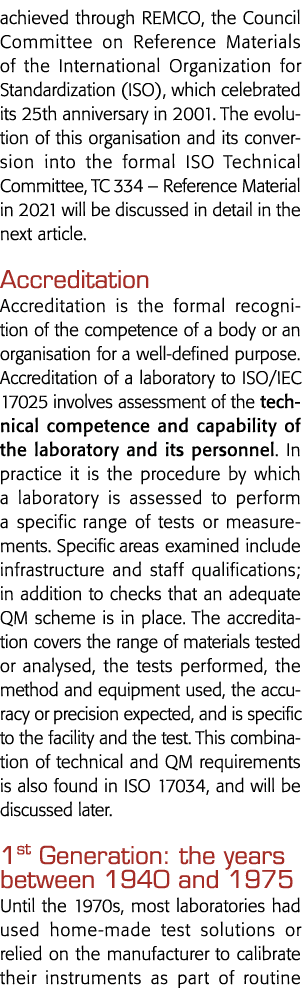

achieved through REMCO, the Council Committee on Reference Materials of the International Organization for Standardiz

VOL 33 NO 4 (2021)

Oval

Oval

Oval

www spectroscopyworld com

26 SPECTROSCOPYWORLD

QUALITY MATTERS

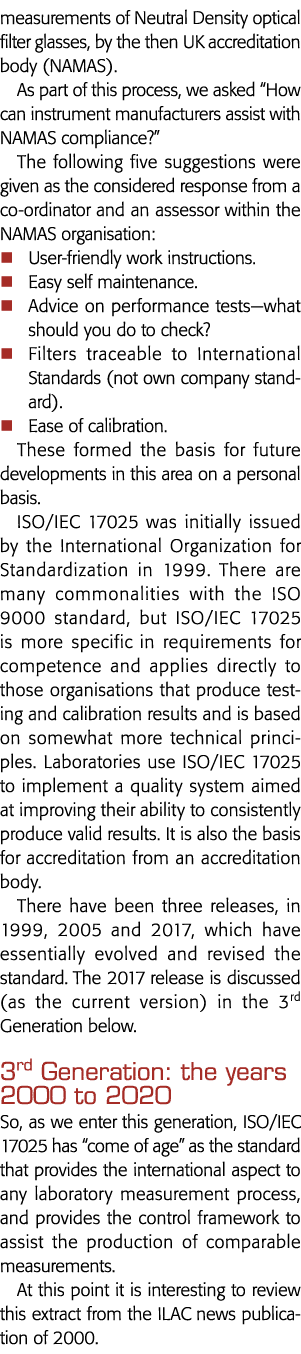

measurements of Neutral Density optical filter glasses, by the then UK accreditation body (NAMAS) As part of this pr

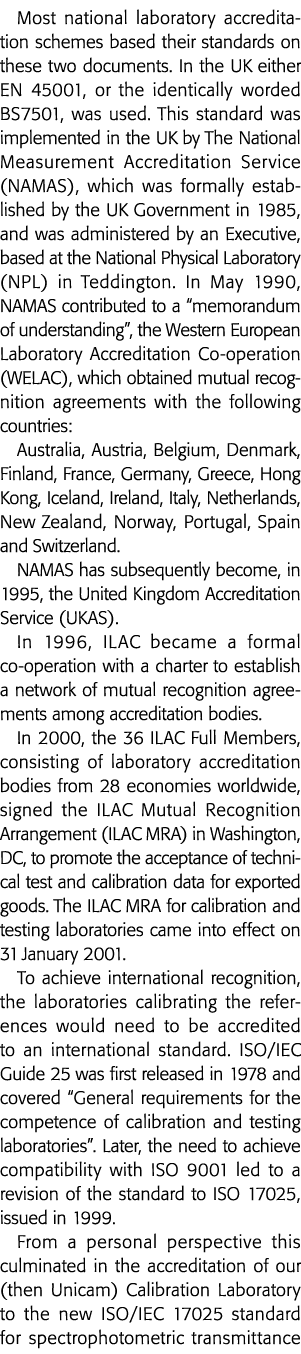

Most national laboratory accreditation schemes based their standards on these two documents In the UK either EN 4500

www spectroscopyworld com

SPECTROSCOPYWORLD 27

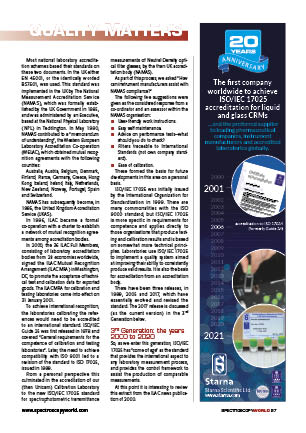

QUALITY MATTERS

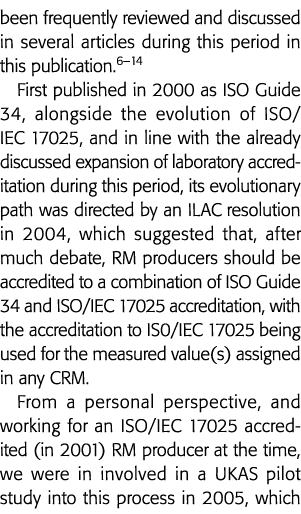

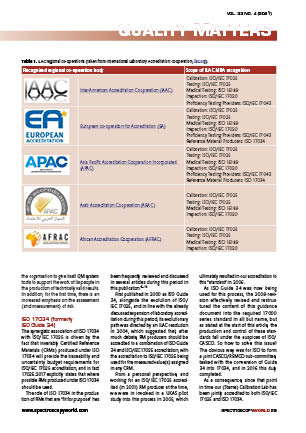

The ILAC MRA was then extended in October 2012 to include the accreditation of inspection bodies In May 2019 it was

tory accreditation bodies These bodies are located in many economies and many of them participate in ILAC The follo

ILAC News, 2 November 2000 Signing of International Arrangement to Enhance Trade An international arrangement, signed

VOL 33 NO 4 (2021)

www spectroscopyworld com

28 SPECTROSCOPYWORLD

QUALITY MATTERS

ultimately resulted in our accreditation to this standard in 2006 As ISO Guide 34 was now being used for this proc

been frequently reviewed and discussed in several articles during this period in this publication 6 14 First publishe

the organisation to give itself QM system tools to support the work of its people in the production of technically va

Recognised regional co-operation body,Scope of ILAC MRA recognition, ,Inter American Accreditation Cooperation (IAAC)

Table 1 ILAC regional co-operations (taken from International Laboratory Accreditation Cooperation, ilac org)

VOL 33 NO 4 (2021)

www spectroscopyworld com

SPECTROSCOPYWORLD 29

QUALITY MATTERS

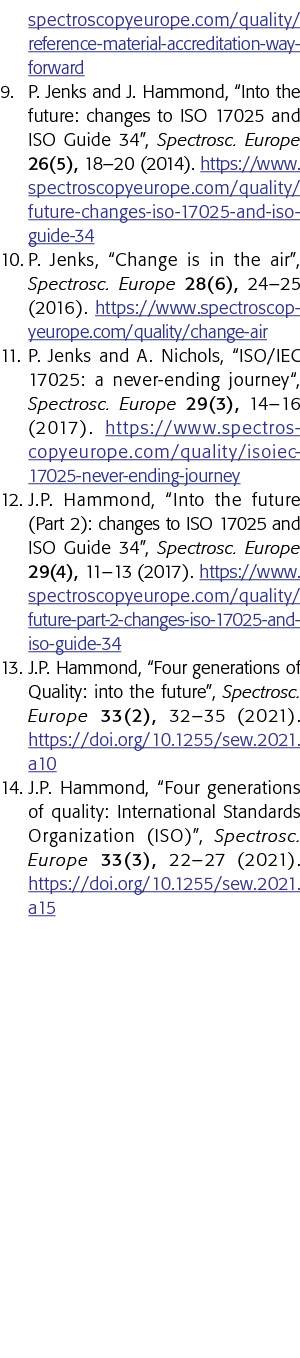

spectroscopyeurope com quality reference-material-accreditation-way-forward 9 P Jenks and J Hammond, Into the fut

International Organization for Standardization (ISO), Geneva, Switzerland (2017) https: www iso org standard 66912

4th Generation: from 2021 forward In 2021, our (Starna) accredited processes continue to evolve, in no small part acc

VOL 33 NO 4 (2021)

John Hammond is an experienced analytical scientist, spectroscopist and technical marketing professional, skilled in

www spectroscopyworld com

30 SPECTROSCOPYWORLD

Sampling COLUMN

VOL 33 NO 4 (2021)

Theory of Sampling application: toward a theory of tumour sampling Nelson R Alexander Roche Diagnostic Solutions, Tu

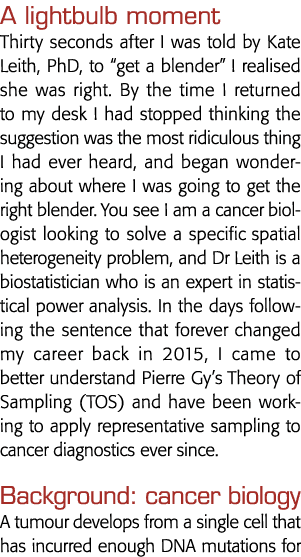

A lightbulb moment Thirty seconds after I was told by Kate Leith, PhD, to get a blender I realised she was right B

the cell to begin to proliferate uncontrollably, as the normal checks and balances within a cell are broken From tha

distinct population of cancer cells within the tumour The movement from the bottom of the tree to the top represents

DOI: 10 1255 sew 2021 a20 2021 The Author Published under a Creative Commons BY-NC-ND licence

Dr Rodolfo Romañach is Professor of Chemistry at the University of Puerto Rico Mayagüez Campus, and site leader for

Dr Joubert is an Associate Professor of Chemistry at the University of Puerto Rico Mayagüez Campus She joined the

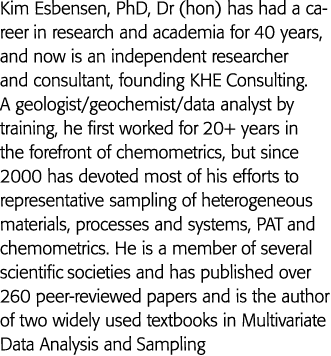

Kim Esbensen, PhD, Dr (hon) has had a career in research and academia for 40 years, and now is an independent researc

Nelson Alexander received his PhD in Cancer Biology from the University of Arizona in 2005, followed by a post-doctor

www spectroscopyworld com

SPECTROSCOPYWORLD 31

Sampling COLUMN

given the long history of the practice of medicine The endeavour of cancer biology is well over 100 years old, and m

sampling of solid tumour tissue enables the detection of more DNA mutations than do individual samples Representativ

admit I only realised this after the fact) is defining the appropriate particle size for analysis of a heterogeneous

VOL 33 NO 4 (2021)

Figure 1 Tumours are spatially heterogeneous mixtures of multiple populations of cancer cells with distinct DNA muta

www spectroscopyworld com

32 SPECTROSCOPYWORLD

Sampling COLUMN

VOL 33 NO 4 (2021)

as the unit of heterogeneity within our sample is a single cell, we wanted to be able to further process the homogena

with the same drug, to linking specific DNA alterations to specific drugs This strategy is called personalised healt

This intuitive feature of the TOS has had the most impact on my thoughts around how solid tumours should be sampled

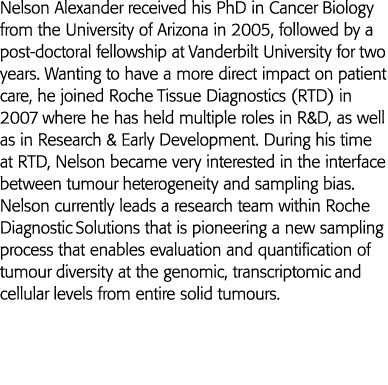

Nelson Alexander received his PhD in Cancer Biology from the University of Arizona in 2005, followed by a post-doctor

www spectroscopyworld com

SPECTROSCOPYWORLD 33

Esterification monitoring using X-Pulse: calculation of activation parameters Esterification is a chemical reaction i

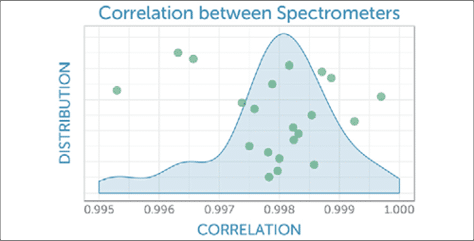

made based upon those outputs A good-quality OEM spectrometer should, by design, exhibit low unit-to-unit variabilit

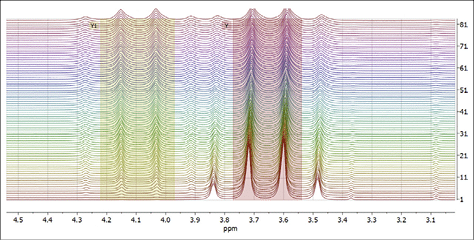

Overlaid 1H NMR spectra showing the decrease in intensity of the ethanol CH2 peak (Y) and the increase of the CH2 pea

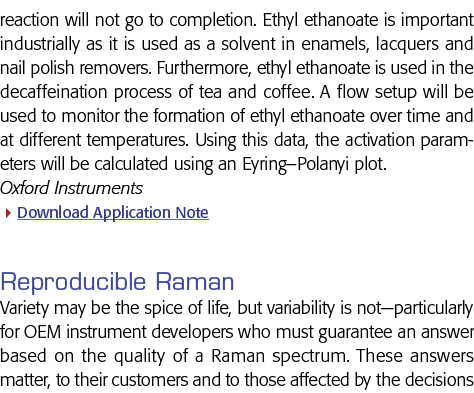

reaction will not go to completion Ethyl ethanoate is important industrially as it is used as a solvent in enamels,

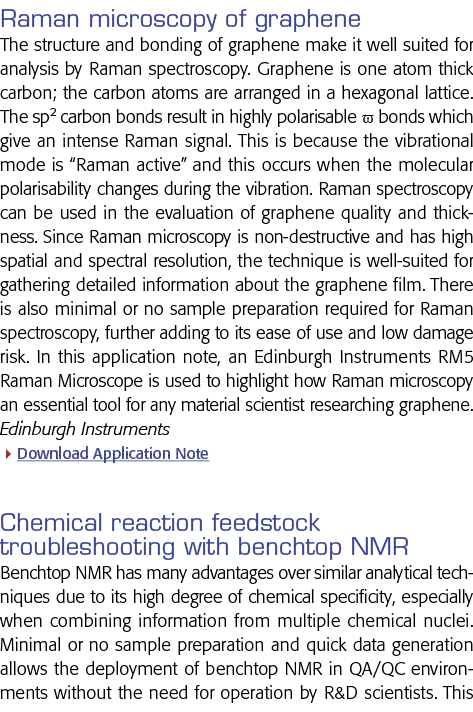

Raman microscopy of graphene The structure and bonding of graphene make it well suited for analysis by Raman spectros

VOL 33 NO 4 (2021)

www spectroscopyworld com

34 SPECTROSCOPYWORLD

VOL 33 NO 4 (2021)

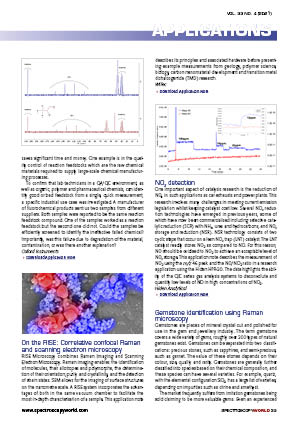

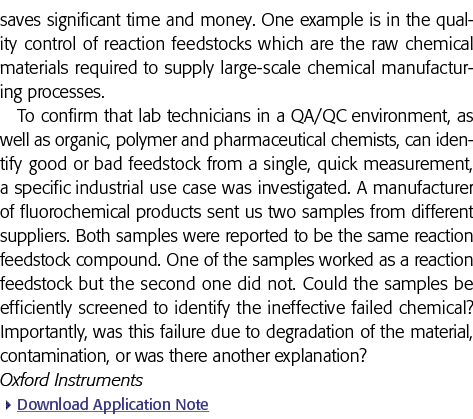

saves significant time and money One example is in the quality control of reaction feedstocks which are the raw chem

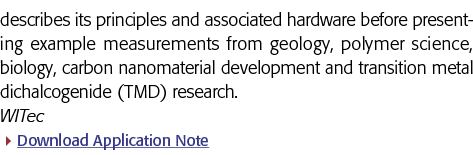

describes its principles and associated hardware before presenting example measurements from geology, polymer science

On the RISE: Correlative confocal Raman and scanning electron microscopy RISE Microscopy combines Raman Imaging and S

NOx detection One important aspect of catalysis research is the reduction of NOx in such applications as car exhausts

www spectroscopyworld com

SPECTROSCOPYWORLD 35

jeweller cannot always distinguish between real and fake gems and therefore additional analytical techniques are re

Basics of ATR spectroscopy ATR has become the dominant method for collecting an FT-IR spectrum of solid materials It

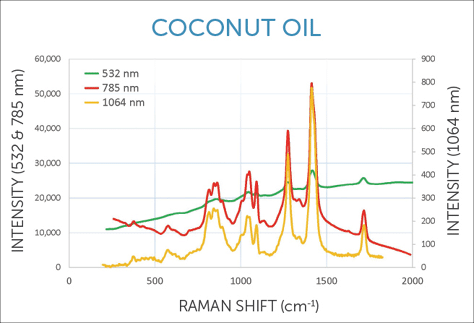

The new Raman Raman spectroscopy is powerful and versatile analytical tool that is applied in a vast array of appli

VOL 33 NO 4 (2021)

www spectroscopyworld com

36 SPECTROSCOPYWORLD

VOL 33 NO 4 (2021)

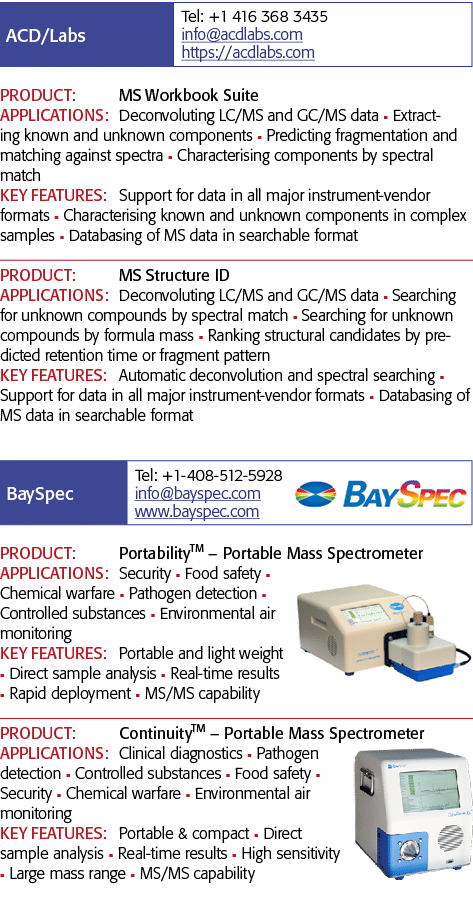

PRODUCT: MS Workbook Suite APPLICATIONS: Deconvoluting LC MS and GC MS data n Extracting known and unknown componen

Product Focus on Mass Spectrometry

PRODUCT: QGA APPLICATIONS: Environmental gas analysis n Fermentation off-gas analysis n Catalysis n Thermal analysi

www spectroscopyworld com

SPECTROSCOPYWORLD 37

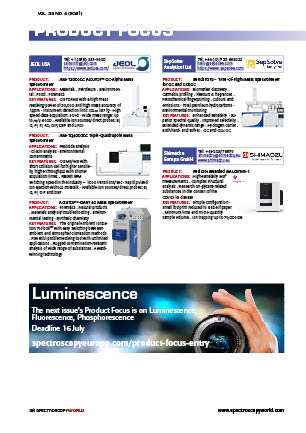

PRODUCT: JMS-T2000GC AccuTOF GC-Alpha Mass Spectrometer APPLICATIONS: Materials n Petroleum n Environmental n Food

PRODUCT: BenchTOF2 Time-of-Flight Mass Spectrometer for GC and GCxGC APPLICATIONS: Biomarker discovery n Cannabis

VOL 33 NO 4 (2021)

Luminescence The next issue s Product Focus is on Luminescence, Fluorescence, Phosphorescence Deadline 16 July spectr

www spectroscopyworld com

38 SPECTROSCOPYWORLD

VOL 33 NO 4 (2021)

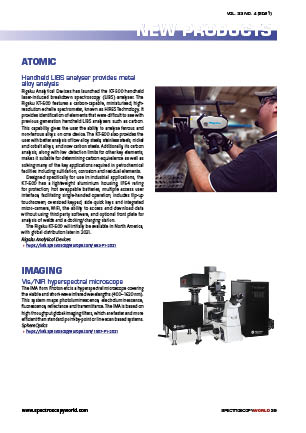

Atomic Handheld LIBS analyser provides metal alloy analysis Rigaku Analytical Devices has launched the KT-500 handhel

www spectroscopyworld com

SPECTROSCOPYWORLD 39

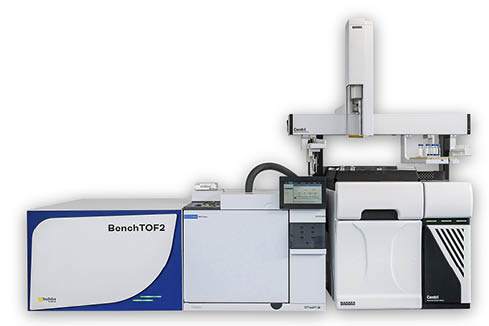

Mass Spec New mass spectrometer from SepSolve Analytical SepSolve Analytical has launched the BenchTOF2 , a next gene

VOL 33 NO 4 (2021)

www spectroscopyworld com

40 SPECTROSCOPYWORLD

be predicted for any material which exhibits a spectral change, for example concentration or crystallinity changes R

Thermo Scientific Nexsa G2

VOL 33 NO 4 (2021)

www spectroscopyworld com

SPECTROSCOPYWORLD 41

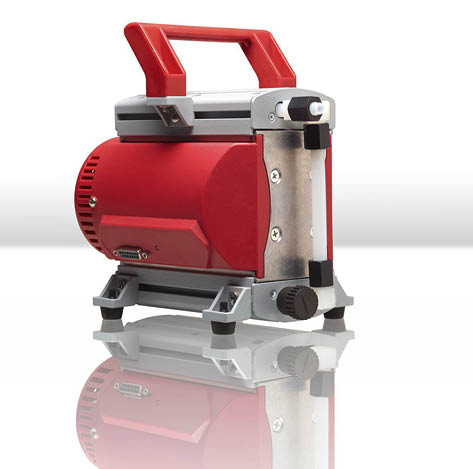

Vacuum Corrosive gas version of diaphragm pump Diaphragm pumps work entirely without oil, which makes them ideal for

VOL 33 NO 4 (2021)

www spectroscopyworld com

42 SPECTROSCOPYWORLD

VOL 33 NO 4 (2021)

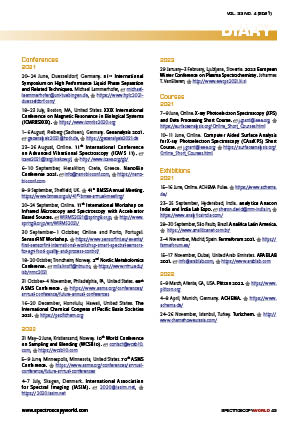

2023 29 January 3 February, Ljubljana, Slovenia 2023 European Winter Conference on Plasma Spectrochemistry Johannes

Conferences 2021 20 24 June, Duesseldorf, Germany 51st International Symposium on High Performance Liquid Phase Sepa

www spectroscopyworld com

SPECTROSCOPYWORLD 43

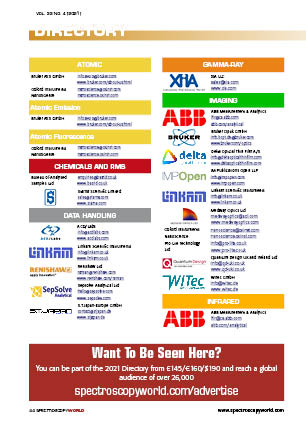

Gamma-Ray, object Rectangle ,XIA LLC sales xia com www xia com,Imaging, object Rectangle ,ABB Measurement & Analytics

Atomic,Bruker AXS GmbH,info BAXS bruker com www bruker com about-us html,Oxford Instruments NanoScience,nanoscience o

VOL 33 NO 4 (2021)

www spectroscopyworld com

44 SPECTROSCOPYWORLD

Want To Be Seen Here You can be part of the 2021 Directory from 145 160 190 and reach a global audience of over 2

LTB Lasertechnik Berlin GmbH,info ltb-berlin de www ltb-berlin de en homepage , object Rectangle ,Linkam Scientific I

object Rectangle ,AP Technologies Ltd info aptechnologies co uk www aptechnologies co uk, object Rectangle ,Bruker O

VOL 33 NO 4 (2021)

www spectroscopyworld com

SPECTROSCOPYWORLD 45

object Rectangle ,XIA LLC sales xia com www xia com,Plasma Spectroscopy, object Rectangle ,Linkam Scientific Instrum

Magnetic Resonance, object Rectangle ,IM Publications Open LLP info impopen com www impopen com, object Rectangle ,Ma

VOL 33 NO 4 (2021)

www spectroscopyworld com

46 SPECTROSCOPYWORLD

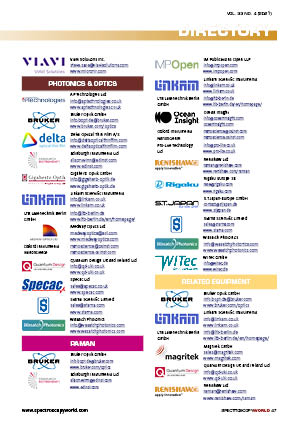

object Rectangle ,Viavi Solutions Inc steve saxe viavisolutions com www micronir com,Photonics & Optics, object Rec

object Rectangle ,IM Publications Open LLP info impopen com www impopen com, object Rectangle ,Linkam Scientific Ins

VOL 33 NO 4 (2021)

www spectroscopyworld com

SPECTROSCOPYWORLD 47

object Rectangle ,Starna Scientific Limited sales starna com www starna com, object Rectangle ,Viavi Solutions Inc

Terahertz, object Rectangle ,Edinburgh Instruments Ltd alison winn edinst com www edinst com,Oxford Instruments NanoS

VOL 33 NO 4 (2021)

www spectroscopyworld com

48 SPECTROSCOPYWORLD

object Rectangle ,IM Publications Open LLP info impopen com www impopen com, object Rectangle ,Linkam Scientific Ins

VOL 33 NO 4 (2021)

www spectroscopyworld com

SPECTROSCOPYWORLD 49

Built with In5.

twitter facebook linkedin

Spectroscopy World Vol. 33 No. 4 (2021)1 / 50
